COATFLOW is a brand created by INNOMELT, a company specialized on manufacturing process of dosification systems for mono and bi-component materials in the electronic, electrical industries, aerospace, automotive, medical, etc.

More than 20 years of experience involved in projects with conformal coatings and dispensing systems, added to the experience in process with the majority of acrylics, polyurethanes and silicones used in the electronics, we have allowed to develop specific solutions for all the demands of the sector.

IN LINE and BENCHTOP solutions

4 and 5 axis robots. Up to 3 valves, includes programming cameras, fiducial alignment or full traceability module.

Wide VALVES range for all apps

More than 25 different models to cover all dispensing and coating requirements according fluid demands.

COATCONTROL PRO and PATHCOAT software

Exclusive offline programming software and real time parameters control. Barcode reader, camera, warpage control, etc.

IR and UV curing ovens

Ceramic IR panels and several UV bulbs, are configured for curing conformal coating and adhesives quickly.

FLUSH-OF Stations

Inspection and Flush-off stations, keep your boards free of bubbles and non-protected areas.

MICROBLASTING reworking systems

Microblasting technology, reworks all kind of coatings and adhesives, selective cleaning and free of residual coatings to assure best IC´s repairing and soldering.

Download PRODUCT FAMILY

Full conformal coating line: CF395IL IN-line robot + CFF15 Flush Off station + CF20 HIR IR oven



CONFORMAL COATING AND DISPENSING ROBOTS


Accurate 4 and 5-axis (x, y, z, rotation and tilt) robots to provide the highest quality support for dispensing and coating purposes.

Real elimination of masking operations, saving time, money and getting high efficiency and repeatability levels on PCB´S protection.

Control software COATcontrolPRO 2 ® that allows us to manage all the parameters necessary for dispensing and coating processes on screen. Elements as level sensors, state of doors, control of conveyor, etc. they are always in present in our day to day.

The best production ratios provided by PATHCOAT ® windows exclusive software. Automatic optimization system and cad import provide a helpful tool for improving patterns from a pic.

All our dispensing/Coating robots has Gantry ball screwed platform and Servo brushless drives to get best accuracy and reliability.

CF440LC

First entry level benchtop machine. Low cost model. 1 valve possible. 400X400X100 MM working area. Ball-Screw Granty system. Servo driven platform. Rotary or Jet valve as option. Tilt and Automatic loading bin optional

CF440

“BIG AREA” benchtop machine. 2 valves possible. 500X500X100 MM working area. Ball-Screw Granty system. Servo driven platform. Automatic loading bin,Flow meter, Head Rotation or Fidutial recognition optional

CF395IL

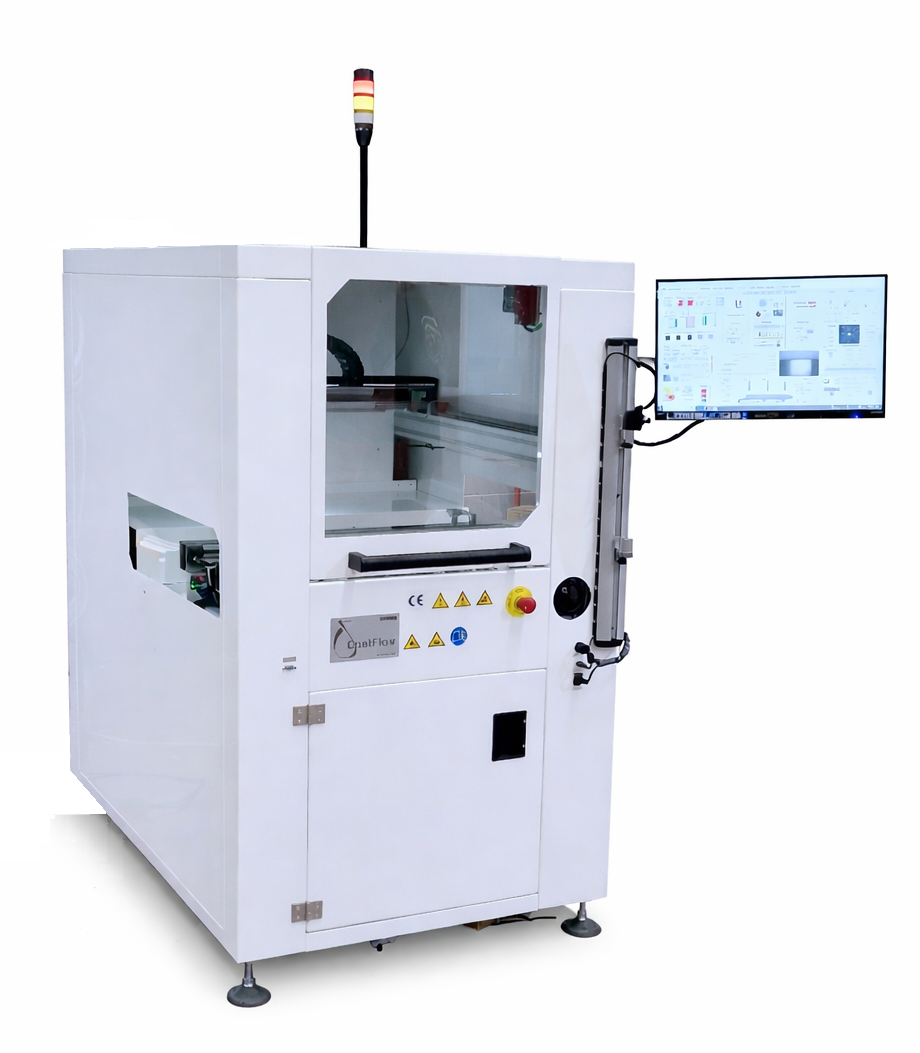

In-Line machine. 3 valves possible. 500X500X100 MM working area. Teaching camera and flow meter included as standard. Head Rotation, automatic width conveyor, traceability module or Fidutial recognition optional

CF395IL IN-line Conformal coating and dispensing machine









VALVES FAMILY

VALVE SELECTOR



VALVES FAMILY

PRECISION SPRAY VALVES



VALVES FAMILY

COATING VALVES



VALVES FAMILY

NEEDLE VALVES



VALVES FAMILY

SPOOL VALVES



VALVES FAMILY

ROTARY VALVES

UV CURING OVENS


Efficient UV curing ovens for all kind of UV adhesives and UV varnishes.

IN-LINE and benchtop models.

3 BULBS TYPES BASED ON THE SPECIFIC APPLICATION

Metal halide as standard

Mercury(Hg)

Visible (GA)

MANUAL OR AUTOMATIC

Adjustable distance between lamps and substrate to use the maximum level of absorption of energy.

STAND ALONE OR IN-LINE

Benchtop solutions or IN-LINE machines with chain or belt conveyor. Automatic open-close doors system.

DRYcontrol UV soft

Our exclusive software keep under control all critical parameters regarding UV curing process

CFUV10

In-line powerfull UV curing oven equipped with 10 UV lamps (250X250 curing Area per lamp, total 1250X500 mm)

CFUV6

In-line powerfull UV curing oven equipped with 6 UV lamps (250X250 curing Area per lamp, total 750X500 mm)

CFUV1 / CFUV2

Benchtop UV curing oven equipped with 1 or 2 UV lamps (250X250 curing Area per lamp) Automatic loading bin

CF395IL IN-line Conformal coating and UV oven CFUV6



IR CURING OVENS


IR curing ovens specifically designed for conformal coatings applications (silicones, urethanes, xylenes, epoxies, etc.).

The ovens are equipped with specially designed IR ceramic (620 x 620 mm) panel to work with specifics wavelength for organics materials to achieve better heating speeds and efficiency.

Automatic hood open.Motorized opening of hoods for greater simplicity.

DRYcontrol IR soft. All our drying stations incorporate 7” color touch screen to control and visualize all parameters necessaries in drying process.

.

CF20 HIR

3 control zones TOP. 2.5 meters lenght. TOP and BOTTOM (Option)

CF40 HIR

6 control zones TOP. 4.5 meters lenght. TOP and BOTTOM (Option)

CF60 HIR

9 control zones TOP. 6.5 meters lenght. TOP and BOTTOM (Option)



COATFLOW machines gallery


Conformal coating and dispensing machines, UV curing ovens, Ir curing ovens, Flush-Off stations, Meter mix solutions.

VIDEO LIBRARY

In our playlist you will find all our machines models running and also several process apps where you can make clear idea about what we can do to protect your business.



Worldwide distribution


Local distributors around the world. Sales and technical specialized service. Check which is your nearest distributor.

FIND
